T系列转向箱技术参数
转向箱,转向器,T型转向箱螺旋锥齿轮转向器，标准化，多品种，速比1∶1、1.5∶1、2.5∶1、3∶1、4∶1、5∶1全部为实际传动比。
T系列转向器，螺旋锥齿轮转向器，标准化，多品种，速比1∶1、1.5∶1、2.5∶1、3∶1、4∶1、5∶1全部为实际传动比。平均效率98%。
有单轴、双横轴、单纵轴、双纵轴可选。
螺旋锥齿轮可以正反运转，低速或高速传动平稳，而且噪声低，振动小，承受力大。

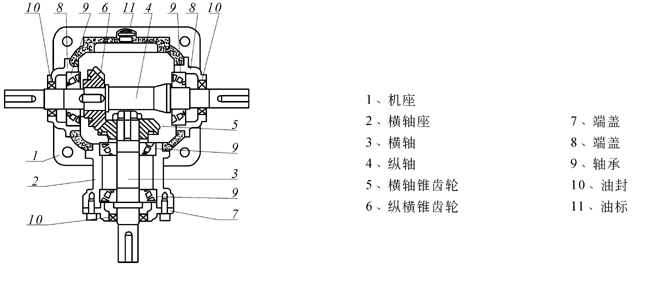

T系列结构图：

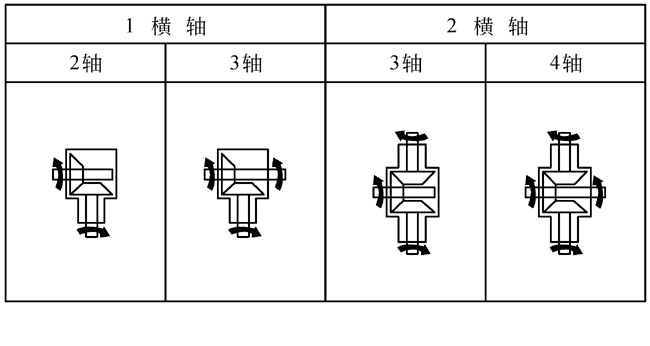

3 转向功能
说明：当输入轴旋转方向改变，输出轴相应改变
T系列螺旋锥齿轮传动箱传动能力表
T系列传动能力表：
|
i
|
n1
r/min
|
T2
|
T4
|
T6
|
T7
|
T8
|
|||||
|
MN2
(N·m)
|
PN1
(kw)
|
MN2
(N·m)
|
PN1
(kw)
|
MN2
(N·m)
|
PN1
(kw)
|
MN2
(N·m)
|
PN1
(kw)
|
MN2
(N·m)
|
PN1
(kw)
|
||
|
1∶1
|
1450
|
11.6
|
1.79
|
31.9
|
4.94
|
96.0
|
14.9
|
142
|
22.0
|
294
|
45.6
|
|
1150
|
11.7
|
1.43
|
34.1
|
4.19
|
103
|
12.7
|
150
|
18.4
|
305
|
37.5
|
|
|
870
|
12.1
|
1.12
|
37.2
|
3.46
|
113
|
10.5
|
164
|
15.2
|
312
|
29.0
|
|
|
580
|
12.1
|
0.747
|
39.5
|
2.45
|
119
|
7.35
|
184
|
11.4
|
319
|
19.8
|
|
|
400
|
12.3
|
0.524
|
40.2
|
1.72
|
122
|
5.20
|
195
|
8.34
|
326
|
14.0
|
|
|
300
|
12.3
|
0.396
|
40.5
|
1.30
|
123
|
3.93
|
198
|
6.35
|
331
|
10.6
|
|
|
200
|
12.4
|
0.226
|
41.2
|
0.880
|
124
|
2.66
|
201
|
4.30
|
338
|
7.23
|
|
|
100
|
12.7
|
0.136
|
41.9
|
0.448
|
127
|
1.36
|
206
|
2.20
|
346
|
3.70
|
|
|
10
|
13.0
|
0.014
|
43.0
|
0.046
|
132
|
0.141
|
214
|
0.228
|
361
|
0.386
|
|
|
1.5∶1
|
1450
|
|
|
|
|
117
|
12.1
|
145
|
15.0
|
185
|
19.1
|
|
1150
|
|
|
|
|
122
|
9.96
|
147
|
12.0
|
188
|
15.4
|
|
|
870
|
|
|
|
|
123
|
7.66
|
150
|
9.30
|
191
|
11.8
|
|
|
580
|
|
|
|
|
126
|
5.23
|
153
|
6.32
|
197
|
8.14
|
|
|
400
|
|
|
|
|
128
|
3.66
|
155
|
4.41
|
200
|
5.70
|
|
|
300
|
|
|
|
|
129
|
2.77
|
157
|
3.35
|
203
|
4.34
|
|
|
200
|
|
|
|
|
131
|
1.87
|
160
|
2.28
|
204
|
2.91
|
|
|
100
|
|
|
|
|
134
|
0.957
|
163
|
1.16
|
210
|
1.49
|
|
|
10
|
|
|
|
|
139
|
0.099
|
169
|
0.12
|
218
|
0.155
|
|
|
2∶1
|
1450
|
12.1
|
0.94
|
42.8
|
3.32
|
102
|
7.90
|
137
|
10.6
|
180
|
14.0
|
|
1150
|
12
|
0.74
|
43.4
|
2.67
|
104
|
6.39
|
139
|
8.55
|
183
|
11.3
|
|
|
870
|
12
|
0.56
|
43.8
|
2.04
|
105
|
4.88
|
141
|
6.56
|
187
|
8.70
|
|
|
580
|
11.9
|
0.37
|
44.4
|
1.38
|
108
|
3.34
|
144
|
4.47
|
191
|
5.92
|
|
|
400
|
12.2
|
0.26
|
45.1
|
0.96
|
109
|
2.33
|
146
|
3.12
|
194
|
4.15
|
|
|
300
|
11.9
|
0.19
|
45.5
|
0.73
|
110
|
1.76
|
148
|
2.37
|
196
|
3.14
|
|
|
200
|
12.2
|
0.13
|
46.1
|
0.49
|
111
|
1.18
|
149
|
1.59
|
198
|
2.12
|
|
|
100
|
11.2
|
0.06
|
46.6
|
0.25
|
114
|
0.608
|
152
|
0.812
|
202
|
1.08
|
|
|
10
|
28.1
|
0.015
|
48.5
|
0.026
|
116
|
0.062
|
157
|
0.084
|
209
|
0.112
|
|
|
2.5∶1
|
1450
|
|
|
|
|
96.2
|
5.97
|
113
|
6.99
|
184
|
11.4
|
|
1150
|
|
|
|
|
97.2
|
4.78
|
115
|
5.64
|
185
|
9.11
|
|
|
870
|
|
|
|
|
99.0
|
3.68
|
3116
|
4.30
|
188
|
7.00
|
|
|
580
|
|
|
|
|
100.0
|
2.48
|
118
|
2.92
|
192
|
4.76
|
|
|
400
|
|
|
|
|
100.9
|
1.73
|
120
|
2.05
|
195
|
3.34
|
|
|
300
|
|
|
|
|
102.9
|
1.32
|
121
|
1.55
|
197
|
2.53
|
|
|
200
|
|
|
|
|
103.9
|
0.888
|
123
|
1.05
|
200
|
1.71
|
|
|
100
|
|
|
|
|
104.9
|
0.448
|
123
|
0.528
|
203
|
0.867
|
|
|
10
|
|
|
|
|
107.8
|
0.046
|
126
|
0.054
|
208
|
0.089
|
|
|
3∶1
|
1450
|
|
|
|
|
93.6
|
4.84
|
105
|
5.42
|
159
|
8.20
|
|
1150
|
|
|
|
|
94.8
|
3.88
|
106
|
4.34
|
160
|
6.55
|
|
|
870
|
|
|
|
|
95.9
|
2.97
|
108
|
3.34
|
163
|
5.04
|
|
|
580
|
|
|
|
|
97.6
|
2.02
|
109
|
2.25
|
166
|
3.42
|
|
|
400
|
|
|
|
|
99.0
|
1.41
|
111
|
1.58
|
168
|
2.39
|
|
|
300
|
|
|
|
|
100
|
1.07
|
111
|
1.18
|
169
|
1.80
|
|
|
200
|
|
|
|
|
100
|
0.712
|
113
|
0.803
|
171
|
1.22
|
|
|
100
|
|
|
|
|
102
|
0.363
|
115
|
0.409
|
173
|
0.618
|
|
|
10
|
|
|
|
|
104
|
0.037
|
118
|
0.042
|
179
|
0.064
|
|
|
4∶1
|
1450
|
|
|
|
|
80.6
|
3.12
|
93.4
|
3.62
|
124
|
4.80
|
|
1150
|
|
|
|
|
81.5
|
2.50
|
94.3
|
2.90
|
125
|
3.83
|
|
|
870
|
|
|
|
|
82.4
|
1.92
|
95.9
|
2.23
|
127
|
2.95
|
|
|
580
|
|
|
|
|
84.1
|
1.30
|
96.9
|
1.50
|
129
|
2.00
|
|
|
400
|
|
|
|
|
85.1
|
0.91
|
98.7
|
1.05
|
131
|
1.40
|
|
|
300
|
|
|
|
|
86.1
|
0.69
|
98.3
|
0.79
|
131
|
1.05
|
|
|
200
|
|
|
|
|
86.0
|
0.46
|
101
|
0.54
|
134
|
0.71
|
|
|
100
|
|
|
|
|
87.7
|
0.23
|
101
|
0.27
|
135
|
0.36
|
|
|
10
|
|
|
|
|
89.3
|
0.02
|
101
|
0.03
|
140
|
0.04
|
|
|
5∶1
|
1450
|
|
|
|
|
52.0
|
1.61
|
57.4
|
1.78
|
68.7
|
2.13
|
|
1150
|
|
|
|
|
52.5
|
1.29
|
58.0
|
1.43
|
69.2
|
1.70
|
|
|
870
|
|
|
|
|
53.2
|
0.99
|
59.0
|
1.10
|
70.4
|
1.31
|
|
|
580
|
|
|
|
|
54.2
|
0.67
|
59.6
|
0.74
|
71.7
|
0.89
|
|
|
400
|
|
|
|
|
54.9
|
0.47
|
60.7
|
0.52
|
72.6
|
0.62
|
|
|
300
|
|
|
|
|
55.5
|
0.36
|
60.4
|
0.39
|
72.9
|
0.47
|
|
|
200
|
|
|
|
|
55.4
|
0.24
|
61.7
|
0.26
|
74.1
|
0.32
|
|
|
100
|
|
|
|
|
56.5
|
0.12
|
62.9
|
0.13
|
75.1
|
0.16
|
|
|
10
|
|
|
|
|
57.6
|
0.01
|
64.5
|
0.01
|
77.8
|
0.02
|
|
